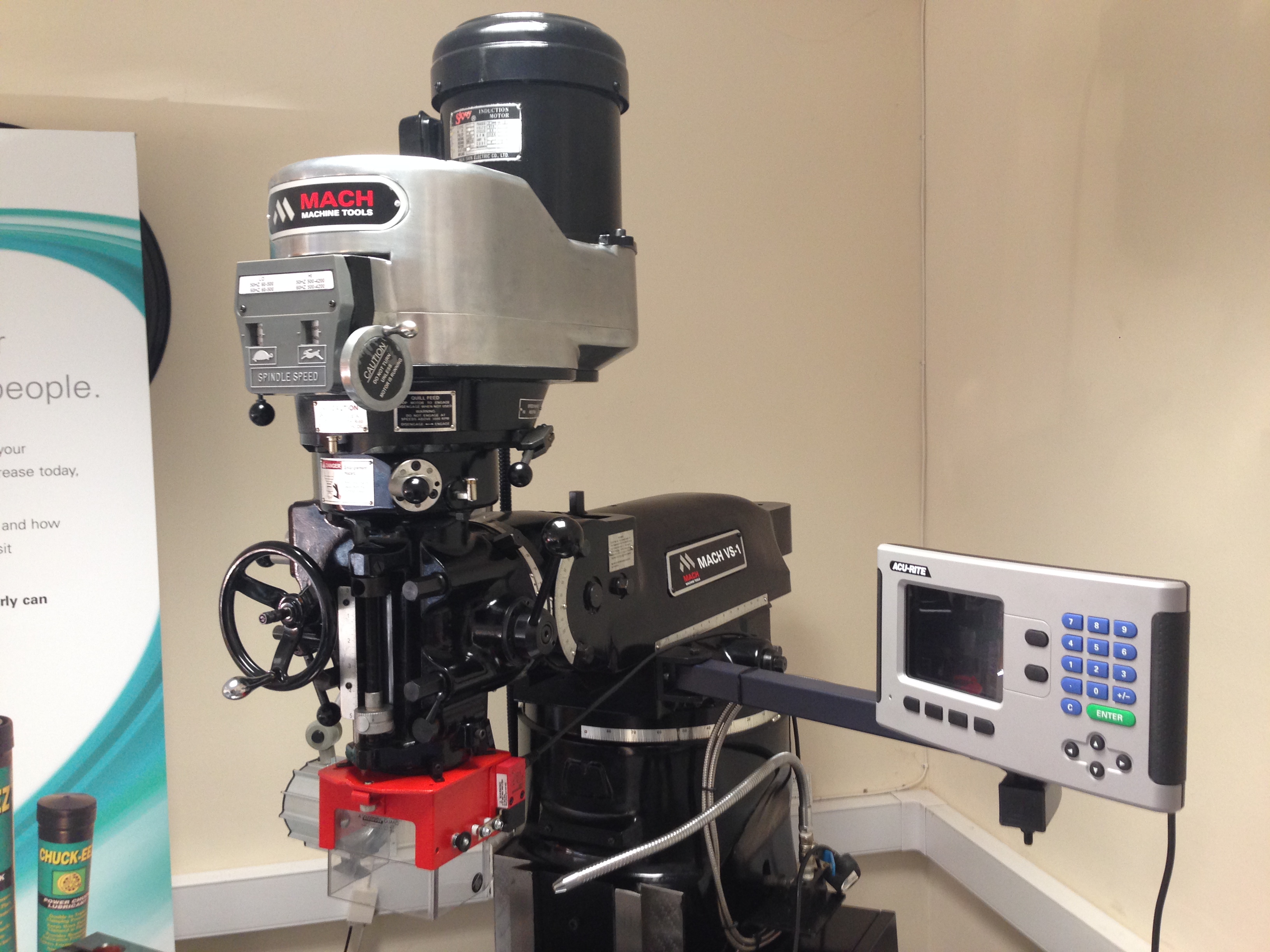

MACH VS-1
Introducing the
| • | Variable speed head for increased flexibility. |
| • | Large capacity 48" x 9" work table. |
| • | Servo power feed to the X & Y-axis for improved performance, higher productivity and longer tool life. |
| • | Chromed slideways and hardened table for prolonged life. |

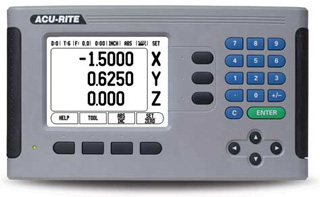

| • | Acu-rite 200s or Newall 2 axis programmable DRO . |
| • | A silver flame interlocked spindle mounted safety guard. |
HIGHLIGHTS
MACH VS-1 machines are manufactured in a high end
facility in Taiwan using parts that are fully
interchangeable with the new Bridgeport turret milling machines...spare parts for which we also supply!
facility in Taiwan using parts that are fully
interchangeable with the new Bridgeport turret milling machines...spare parts for which we also supply!
Fully CE compliant, and supplied with a comprehensive instruction manual for ease of use and maintenance, the
machines also come with a 12 months Parts and Labour Warranty** for additional peace of mind.
If youre in the market for a Turret-type milling machine that delivers more than you thought for a lot less than you
think check-out our new MACH VS-1 machines.
machines also come with a 12 months Parts and Labour Warranty** for additional peace of mind.
If youre in the market for a Turret-type milling machine that delivers more than you thought for a lot less than you
think check-out our new MACH VS-1 machines.
New MACH VS-1 Turret-type Milling Machines from MACH Machine Tools Ltd, the new force in the machine tools
sector, have now arrived and are available for immediate delivery. Providing precision component manufacturers with
out-of-this-world performance at a distinctly down-to-earth price these machines are fast, accurate and reliable.
sector, have now arrived and are available for immediate delivery. Providing precision component manufacturers with
out-of-this-world performance at a distinctly down-to-earth price these machines are fast, accurate and reliable.
Turret-type Milling Machines...available now!
From £11,495.00 + VAT*
From £11,495.00 + VAT*
Table travel (X-Axis): 914 mm
Saddle Travel (Y-Axis): 305 mm
Quill Travel: 127 mm
Worktable (standard): 1219 x 299 mm
T Slot center distance: 64 mm centers
T-Slot Size: 16 mm
Height Above Floor (Max.): 1200 mm
Weight of Workpiece (Max.): 340 kg
Boring Range: 152 mm
Mild Steel
Spindle Diameter: 48 mm
Speed, high (Infinitely Variable): 500-4200 rpm
Speed, low: 60-500 rpm
Floor Space: 2.5 x 1.6 m
Machine height: 2.15 m
Mass of Machine: 885 kg
Saddle Travel (Y-Axis): 305 mm
Quill Travel: 127 mm
Worktable (standard): 1219 x 299 mm
T Slot center distance: 64 mm centers
T-Slot Size: 16 mm
Height Above Floor (Max.): 1200 mm
Weight of Workpiece (Max.): 340 kg
Boring Range: 152 mm
Mild Steel
Spindle Diameter: 48 mm
Speed, high (Infinitely Variable): 500-4200 rpm
Speed, low: 60-500 rpm
Floor Space: 2.5 x 1.6 m
Machine height: 2.15 m
Mass of Machine: 885 kg
MACHINE SPECIFICATIONS
Acu-Rite 300s 3 Axis DRO Additional £495.00
Y Axis Servo Power Feed Additional £360.00
6" Swivel Base Vice Additional £200.00
8 Swivel Base Vice Additional £300.00
Air Powered Drawbar Additional £550.00
Quill Star (Quill Readout) Additional £215.00
R8 Metric Collet Set Additional £225.00
Y Axis Servo Power Feed Additional £360.00
6" Swivel Base Vice Additional £200.00
8 Swivel Base Vice Additional £300.00
Air Powered Drawbar Additional £550.00
Quill Star (Quill Readout) Additional £215.00
R8 Metric Collet Set Additional £225.00
OPTIONS AVAILABLE
MACH VS-1
Turret-type Milling Machine.
Turret-type Milling Machine.
* £10.950.00 + VAT is the price for a standard configuration
MACH VS-1 machine. For a full list of additional options and their price please see overleaf.
** Applies to machines installed in the UK mainland.
MACH VS-1 machine. For a full list of additional options and their price please see overleaf.
** Applies to machines installed in the UK mainland.
